Vibratory Hammers for Sheet Pile Driving

Excavator Vibratory Pile Driving Hammers Hydrulic Vibratory Hammer

Vibratory hammers as vibratory pile driver is a tool to drive sheet or tube piles to the soil by vertical vibrations.It is used in the various ground conditions and depths.The powerful and high quality vibro hammers are equipped with a wide range of hydraulic clamps and excavator.Manufacturing pile vibratory hammers by core technology with super stability.

Inquiry now

product introduction

Vibratory Pile Driving Hammers,Vibratory Pilling Hammer,Vibratory Hammers for Sheet Pile Driving,Hydrulic Vibratory Hammers,Offshore Vibratory Hammer,Vibratory Hammer Diagram,Vibratory Hammers Driving Pile,Hydarulic Impact Hammer,Side Grip Vibratory Hammer

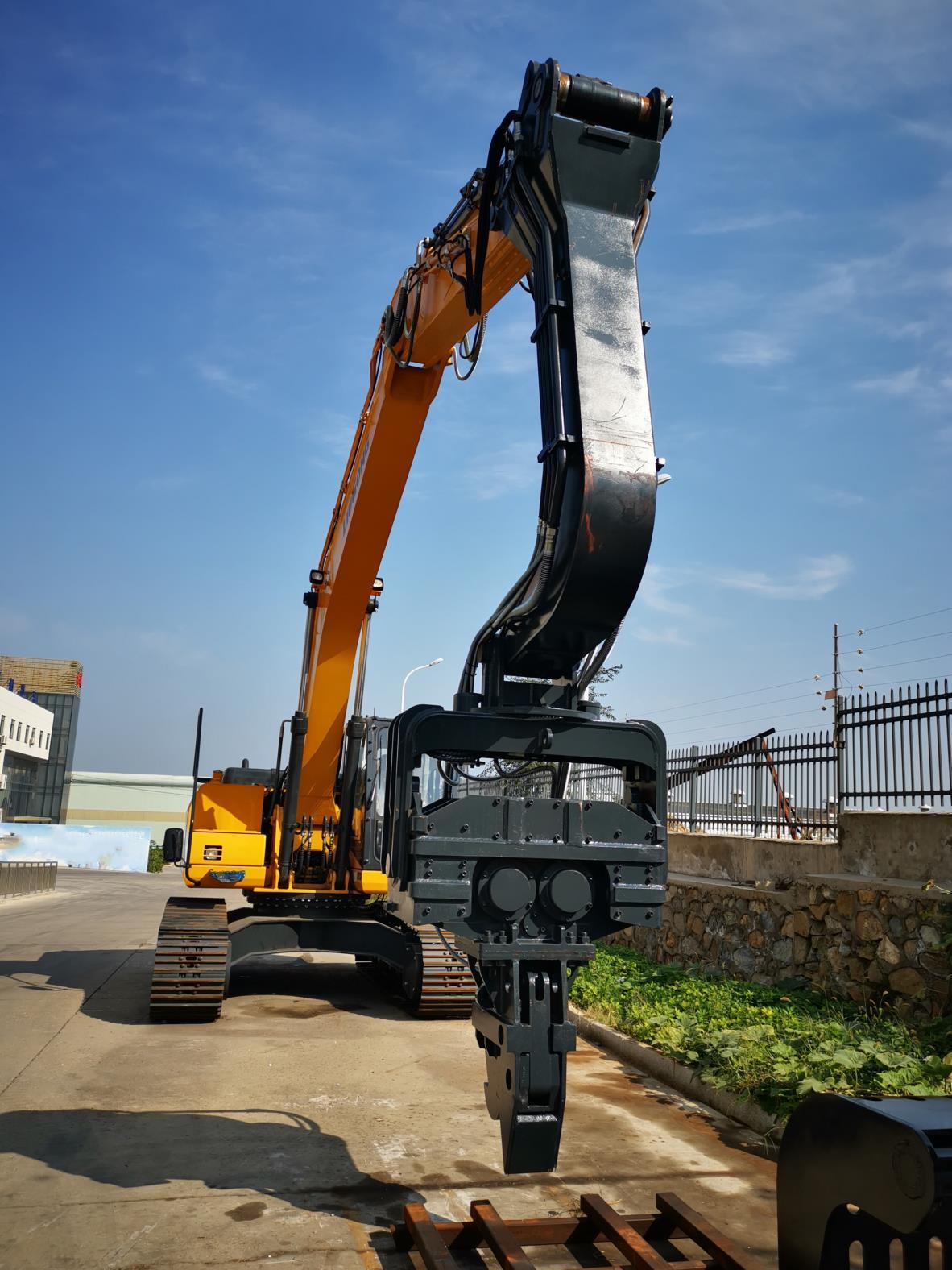

Hydraulic Vibratory Hammer – the ultimate piling hammer for any construction site.,the ultimate solution to your pile driving needs.With its versatile design, this hammer is perfect for driving concrete piles, steel casing piles, round piles, square piles, H-Beam piles and more. Its ability to adapt to various driving types, like Fixed Leader Mounting, makes it a must-have tool for any professional construction team.The hydraulic power of this hammer makes it not only efficient but also environmentally friendly, reducing noise pollution on the worksite. Its advanced technology ensures a smooth and precise operation, increasing the lifespan of both the hammer and the pile itself.

Hydraulic Vibratory Hammer Specification
Data/Model	V250	V350	V500	V600	V650	V800	V1000	V1100
Frequency (rpm)	3200	3000	2600	2650	2700	2400	2300	2300
Eccentric Moment (N.m)	22	36	69	77	83.5	126	175	180
Centrifugal Force (KN)	250	360	510	600	650	800	1050	1100
Hydraulic System Pressure (Mpa)	32	32	32	32	32	32	32	32
Hydraulic System Flow Rating (Lpm)	105	250	215	300	310	310	380	380
Max Hyraulic System Oil Flow (Lpm)	125	290	240	320	340	350	415	445
Maximun Pile Length (m)	6-9	6-9	6-15	6-18	6-18	6-22	6-30	6-36
Auxiliary Arm Weight (kg)	700	800	800	900	900	1000	1000	1000
Total Weight (kg)	1250	1750	2750	3200	3200	3600	3300	4200
Sutable Excavator (T)	15-20	18-25	27-35	36-42	42-50	50-70	70-90	70-90
