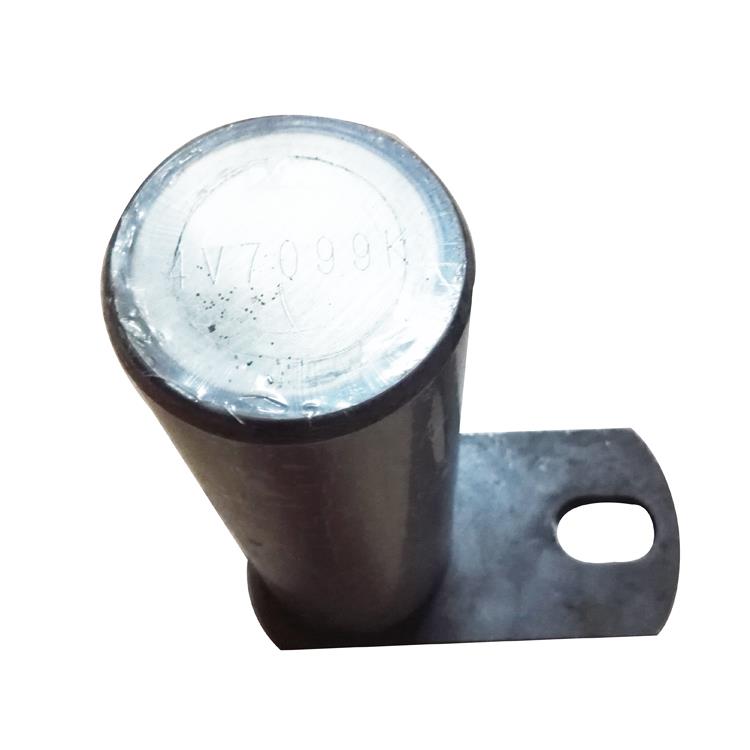

After quenching,surface heat treatment are taken out,a series of machining process,then the bucket pin will be more wear resistant.OEM bucket pin by different specification.
moddle :
CAT Bucket Pins,Komatsu Digger Pins,Kubota Excavator Pins,Kawasaki Bucket PinsDigger Pins Excavator Pin Bush Manufacturer Suppliers
Material | 45#,40Cr | Part Name | Digger Pins Excavator Pin Bush |
Hardness | 48-60HRC | Application | Excavator,Wheel Loader etc |
MOQ | 20pcs | Suitable Model | All Brands |
Color | White,Black,Customized | Loading Port | Xiamen,China |
Specification | Customized | Payment Term | T/T,L/C,Ali Trade Assurance,Western Union,Paypal |
Packing | Plywood Pallet | Delivery Time | 25 Days after Confirm Order or Drawing |
Pins Bushings for Excavator,Wheel Loader,Bulldozer,Backhoe,Crawler Crane,Crawler Tractor etc.
We can customize pin bushing by drawing or sample or size picture.There are different kind of types pin bushing.
In different working condition,we can offer the professional advise.
Advantage:
Bucket Pins Size for Reference | |||
Diameter/mm | Length Range/mm | Diameter/mm | Length Range/mm |
Φ25 | 70-180 | Φ75 | 450-550 |
Φ30 | 80-200 | Φ80 | 200-890 |
Φ35 | 100-260 | Φ85 | 290-770 |
Φ40 | 150-380 | Φ90 | 250-880 |
Φ45 | 140-430 | Φ95 | 210-990 |
Φ50 | 250-450 | Φ100 | 550-930 |
Φ55 | 260-500 | Φ105 | 310-1000 |
Φ60 | 190-550 | Φ110 | 240-1050 |
Φ65 | 200-650 | Φ115 | 550-1050 |
Φ70 | 180-780 | Φ120 | 650-1150 |
More diameter and length can be customized by customers. |
Pin Measurement Guide
There are so many OEM specifications. When you ask for the different position pin,
we may ask you to verify and take measurements in your side,then we can ensure.
Below information what we will need:Pin Diameter,Center,Width
1. Pick up a tape measure.
2. Go to the bucket or attachment that fits nicely onto the dipper arm
3. Take measurements A,B,C,D,E as accurately as possible.
(Pin diameter measurements are usually of a 5mm increment,the diameter is to be 25mm,30mm,35mm etc.
Maybe there are some special case,pls contact us freely.)
4. Please send the measurements to our sales team email info@doolincm.com.
If we have received your information,then we can confirm what you need correctly.
Are Bucket Pins hardened?
Yes, Bucket Pins are typically hardened to increase their durability and resistance to wear. Hardening involves treating the surface of the pins to make them harder, which helps to prevent premature wear and extend their lifespan.
Bucket pins are subjected to significant forces and stresses during excavation and material handling operations. They are constantly exposed to abrasive materials, such as rocks and soil, which can cause wear and reduce the lifespan of the pins if they are not adequately hardened.
The hardening process usually involves heat treatment techniques such as induction hardening or case hardening. These processes heat the surface of the pins to high temperatures and then rapidly cool them, transforming the microstructure of the metal to make it harder. This hardened surface layer provides increased resistance to abrasion and extends the service life of the pins.
It's important to note that not all bucket pins are hardened to the same extent. The hardness level may vary depending on the specific application, the type of excavator, and the manufacturer's specifications. Hardened bucket pins are commonly used in heavy-duty applications and attachments, such as rock buckets or buckets used in abrasive environments, where increased wear resistance is crucial.
