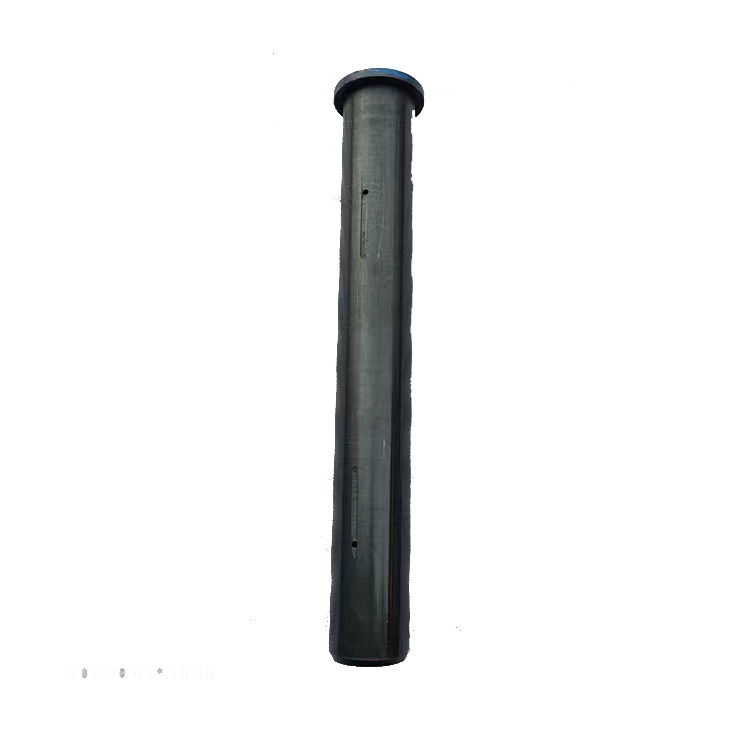

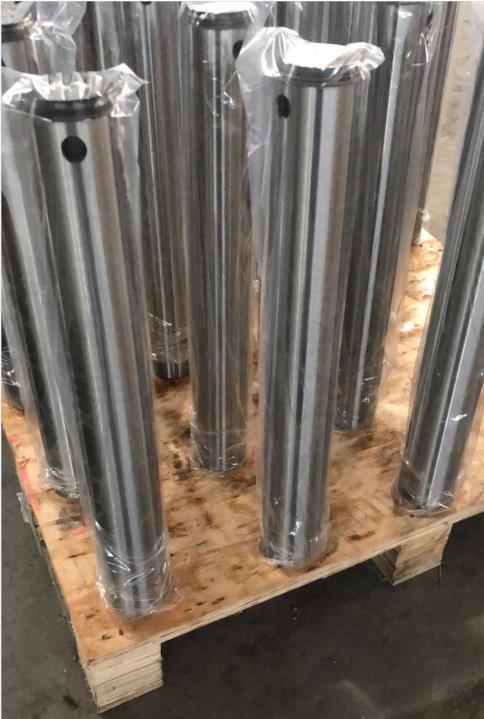

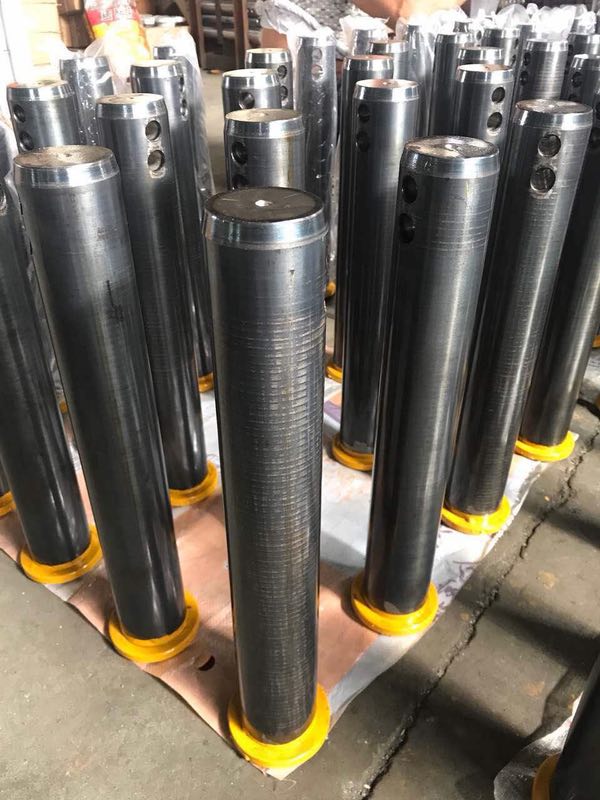

Bucket Pin and Bushing 70mm 80mm 90mm Size Excavator Bucket Pins

Bucket Pin and Bushing 70mm 80mm 90mm Size Excavator Bucket Pins

Pins Bushings for Excavator,Wheel Loader,Bulldozer,Backhoe,Crawler Crane,Crawler Tractor etc.We can customize pin bushing by drawing or sample or size picture.There are different kind of types pin bushing.In different working condition,we can offer the professional advise.

Advantage:

1. High Wear Resistance
2. Low Suface Roughness
3. Technical Solution
4. Pins are Designed for Special Condition
5. Surface Heat Treatment to Provide Superior Performance
6. Hardening and Tempering
7. General Pin,Zinc Plated Pins
8. OEM Service

Bucket Pins Size for Reference
Diameter/mm	Length Range/mm	Diameter/mm	Length Range/mm
Φ25	70-180	Φ75	450-550
Φ30	80-200	Φ80	200-890
Φ35	100-260	Φ85	290-770
Φ40	150-380	Φ90	250-880
Φ45	140-430	Φ95	210-990
Φ50	250-450	Φ100	550-930
Φ55	260-500	Φ105	310-1000
Φ60	190-550	Φ110	240-1050
Φ65	200-650	Φ115	550-1050
Φ70	180-780	Φ120	650-1150
More diameter and length can be customized by customers.

Pin Measurement Guide

There are so many OEM specifications. When you ask for the different position pin,

we may ask you to verify and take measurements in your side,then we can ensure.

Below information what we will need:Pin Diameter,Center,Width

1. Pick up a tape measure.

2. Go to the bucket or attachment that fits nicely onto the dipper arm

3. Take measurements A,B,C,D,E as accurately as possible.

(Pin diameter measurements are usually of a 5mm increment,the diameter is to be 25mm,30mm,35mm etc.Maybe there are some special case,pls contact us freely)

4. Please send the measurements to our sales team email info@doolincm.com.

If we have received your information,then we can confirm what you need correctly.
